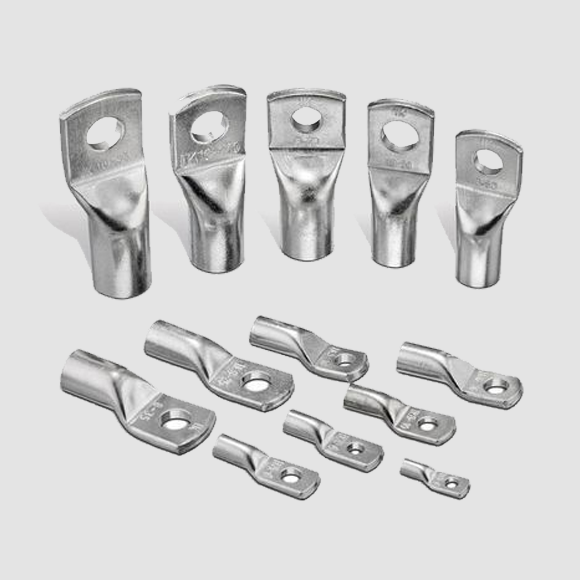

Standart Tip Sıkmalı Kablo Pabucu
* EN/13600 standartlarında bakır malzemelerden imal edilmiştir.
* Sıkma işlemi yapılırken kırılmayı, sıkma işlemi sonrasında gevşemeyi
önlemek için üretim esnasında tavlı bakır borular kullanılmıştır.
* Üretime %99.9 oranında iletkenliğe sahip bakır kullanılmıştır.
* 5-8 Micron aralığında 100% Kalay kaplama yapılmaktadır.
Ürün Açıklaması
| Sipariş Kodu | Ürün Kodu | Kablo Kesiti (mm²) | Delik Çapı Ø | Ebatlar (mm) | Kutu Adet | |||||||
| d | d1 | d2 | l1 | a | c1 | c2 | b | |||||
| A03900 | SKP-S 00605 | 6 mm² | M5 | 5.5 | 4.3 | 5.5 | 20.0 | 10.5 | 6.0 | 6.0 | 8.5 | 1.000 |
| A03901 | SKP-S 01005 | 10 mm² | M5 | 5.5 | 4.7 | 6.6 | 22.0 | 10.0 | 5.5 | 7.0 | 10.3 | 1.000 |
| A03902 | SKP-S 01006 | M6 | 6.5 | 4.7 | 6.6 | 22.0 | 10.0 | 5.5 | 7.0 | 10.3 | 1.000 | |
| A03903 | SKP-S 01008 | M8 | 8.5 | 4.7 | 6.6 | 23.7 | 10.0 | 6.8 | 8.7 | 13.5 | 1.000 | |
| A03904 | SKP-S 01605 | 16 mm² | M5 | 5.5 | 5.6 | 7.8 | 24.0 | 12.0 | 5.5 | 6.5 | 11.2 | 500 |
| A03905 | SKP-S 01606 | M6 | 6.5 | 5.6 | 7.8 | 24.0 | 12.0 | 5.5 | 6.5 | 11.2 | 500 | |
| A03906 | SKP-S 01608 | M8 | 8.5 | 5.6 | 7.8 | 26.2 | 12.0 | 6.8 | 8.7 | 13.5 | 500 | |
| A03907 | SKP-S 01610 | M10 | 10.5 | 5.6 | 7.8 | 26.0 | 12.0 | 7.5 | 8.5 | 16.0 | 500 | |
| A03908 | SKP-S 02506 | 25 mm² | M6 | 6.5 | 7.1 | 9.5 | 32.2 | 16.0 | 6.8 | 9.2 | 13.7 | 400 |
| A03909 | SKP-S 02508 | M8 | 8.5 | 7.1 | 9.5 | 32.2 | 16.0 | 6.8 | 9.2 | 13.7 | 400 | |
| A03910 | SKP-S 02510 | M10 | 10.5 | 7.1 | 9.5 | 34.0 | 16.0 | 8.0 | 11.0 | 16.0 | 300 | |
| A03911 | SKP-S 02512 | M12 | 13.0 | 7.1 | 9.5 | 37.0 | 16.0 | 11.0 | 11.0 | 18.0 | 200 | |
| A03912 | SKP-S 03506 | 35 mm² | M6 | 6.5 | 8.2 | 10.8 | 35.7 | 19.0 | 8.3 | 9.7 | 15.3 | 200 |
| A03913 | SKP-S 03508 | M8 | 8.5 | 8.2 | 10.8 | 35.7 | 19.0 | 8.3 | 9.7 | 15.3 | 200 | |
| A03914 | SKP-S 03510 | M10 | 10.5 | 8.2 | 10.8 | 38.0 | 19.0 | 10.0 | 12.0 | 15.7 | 200 | |
| A03915 | SKP-S 03512 | M12 | 13.0 | 8.2 | 10.8 | 38.0 | 19.0 | 10.0 | 12.0 | 18.0 | 150 | |
| A03916 | SKP-S 05006 | 50 mm² | M6 | 6.5 | 10.1 | 13.0 | 39.2 | 21.0 | 8.3 | 9.7 | 18.9 | 150 |
| A03917 | SKP-S 05008 | M8 | 8.5 | 10.1 | 13.0 | 39.2 | 21.0 | 8.3 | 9.7 | 18.9 | 150 | |
| A03918 | SKP-S 05010 | M10 | 10.5 | 10.1 | 13.0 | 41.5 | 21.0 | 10.0 | 12.0 | 18.9 | 150 | |
| A03919 | SKP-S 05012 | M12 | 13.0 | 10.1 | 13.0 | 41.5 | 21.0 | 10.0 | 12.0 | 18.9 | 150 | |
| A03920 | SKP-S 05014 | M14 | 15.0 | 10.1 | 13.0 | 43.0 | 21.0 | 13.0 | 13.0 | 22.0 | 150 | |
| A03921 | SKP-S 07008 | 70 mm² | M8 | 8.5 | 11.5 | 14.7 | 42.3 | 23.0 | 8.3 | 9.7 | 21.1 | 100 |
| A03922 | SKP-S 07010 | M10 | 10.5 | 11.5 | 14.7 | 44.6 | 23.0 | 10.0 | 12.0 | 21.1 | 100 | |
| A03923 | SKP-S 07012 | M12 | 13.0 | 11.5 | 14.7 | 44.6 | 23.0 | 10.0 | 12.0 | 21.1 | 100 | |
| A03924 | SKP-S 07014 | M14 | 15.0 | 11.5 | 14.7 | 47.6 | 23.0 | 15.0 | 15.0 | 21.5 | 100 | |
| A03925 | SKP-S 07016 | M16 | 17.0 | 11.5 | 14.7 | 47.6 | 23.0 | 15.0 | 15.0 | 21.5 | 100 | |
| A03926 | SKP-S 09508 | 95 mm² | M8 | 8.5 | 13.5 | 16.7 | 48.8 | 26.0 | 10.0 | 12.0 | 24.7 | 75 |
| A03927 | SKP-S 09510 | M10 | 10.5 | 13.5 | 16.7 | 48.8 | 26.0 | 10.0 | 12.0 | 24.7 | 75 | |
| A03928 | SKP-S 09512 | M12 | 13.0 | 13.5 | 16.7 | 48.8 | 26.0 | 10.0 | 12.0 | 24.7 | 75 | |
| A03929 | SKP-S 09514 | M14 | 15.0 | 13.5 | 16.7 | 50.0 | 26.0 | 14.0 | 14.0 | 26.0 | 80 | |
| A03930 | SKP-S 09516 | M16 | 17.0 | 13.5 | 16.7 | 52.0 | 26.0 | 16.0 | 16.0 | 26.0 | 80 | |
| A03931 | SKP-S 12010 | 120 mm² | M10 | 10.5 | 15.5 | 19.0 | 56.0 | 29.0 | 13.0 | 14.5 | 27.7 | 50 |
| A03932 | SKP-S 12012 | M12 | 13.0 | 15.5 | 19.0 | 56.0 | 29.0 | 13.0 | 14.5 | 27.7 | 50 | |
| A03933 | SKP-S 12014 | M14 | 15.0 | 15.5 | 19.0 | 56.0 | 29.0 | 13.0 | 14.5 | 27.7 | 50 | |
| A03934 | SKP-S 12016 | M16 | 17.0 | 15.5 | 19.0 | 56.0 | 29.0 | 13.0 | 14.5 | 27.7 | 50 | |
| A03935 | SKP-S 12020 | M20 | 21.0 | 15.5 | 19.0 | 56.0 | 29.0 | 16.0 | 16.0 | 29.0 | 50 | |
| A03936 | SKP-S 15010 | 150 mm² | M10 | 10.5 | 16.5 | 21.0 | 60.0 | 30.0 | 16.5 | 16.5 | 30.4 | 40 |
| A03937 | SKP-S 15012 | M12 | 13.0 | 16.5 | 21.0 | 60.0 | 30.0 | 16.5 | 16.5 | 30.4 | 40 | |
| A03938 | SKP-S 15014 | M14 | 15.0 | 16.5 | 21.0 | 60.0 | 30.0 | 16.5 | 16.5 | 30.4 | 40 | |
| A03939 | SKP-S 15016 | M16 | 17.0 | 16.5 | 21.0 | 60.0 | 30.0 | 16.5 | 16.5 | 30.4 | 40 | |
| A03940 | SKP-S 18510 | 185 mm² | M10 | 10.5 | 18.4 | 23.0 | 65.5 | 33.0 | 17.0 | 18.0 | 34.2 | 30 |
| A03941 | SKP-S 18512 | M12 | 13.0 | 18.4 | 23.0 | 65.5 | 33.0 | 17.0 | 18.0 | 34.2 | 30 | |
| A03942 | SKP-S 18514 | M14 | 15.0 | 18.4 | 23.0 | 65.5 | 33.0 | 17.0 | 18.0 | 34.2 | 30 | |
| A03943 | SKP-S 18516 | M16 | 17.0 | 18.4 | 23.0 | 65.5 | 33.0 | 17.0 | 18.0 | 34.2 | 30 | |
| A03944 | SKP-S 24010 | 240 mm² | M10 | 10.5 | 21.0 | 26.0 | 72.0 | 38.0 | 17.0 | 18.0 | 38.7 | 25 |
| A03945 | SKP-S 24012 | M12 | 13.0 | 21.0 | 26.0 | 72.0 | 38.0 | 17.0 | 18.0 | 38.7 | 25 | |
| A03946 | SKP-S 24014 | M14 | 15.0 | 21.0 | 26.0 | 72.0 | 38.0 | 17.0 | 18.0 | 38.7 | 25 | |
| A03947 | SKP-S 24016 | M16 | 17.0 | 21.0 | 26.0 | 72.0 | 38.0 | 17.0 | 18.0 | 38.7 | 25 | |
| A03948 | SKP-S 30012 | 300 mm² | M12 | 13.0 | 23.4 | 28.6 | 77.0 | 41.0 | 18.0 | 18.0 | 42.6 | 20 |
| A03949 | SKP-S 30014 | M14 | 15.0 | 23.4 | 28.6 | 77.0 | 41.0 | 18.0 | 18.0 | 42.6 | 20 | |
| A03950 | SKP-S 30016 | M16 | 17.0 | 23.4 | 28.6 | 77.0 | 41.0 | 18.0 | 18.0 | 42.6 | 20 | |
| A03951 | SKP-S 40014 | 400 mm² | M14 | 15.0 | 27.0 | 33.0 | 88.0 | 49.0 | 20.0 | 20.0 | 48.0 | 12 |
| A03952 | SKP-S 40016 | M16 | 17.0 | 27.0 | 33.0 | 88.0 | 49.0 | 20.0 | 20.0 | 48.0 | 12 | |
| A03953 | SKP-S 40020 | M20 | 21.0 | 27.0 | 33.0 | 88.0 | 49.0 | 20.0 | 20.0 | 48.0 | 12 | |
| A03954 | SKP-S 50016 | 500 mm² | M16 | 17.0 | 30.0 | 38.0 | 96.0 | 52.0 | 22.0 | 22.0 | 55.0 | 8 |
| A03955 | SKP-S 50020 | M20 | 21.0 | 30.0 | 38.0 | 96.0 | 52.0 | 22.0 | 22.0 | 55.0 | 8 | |
| A03956 | SKP-S 60020 | 600 mm² | M20 | 21.0 | 34.0 | 42.0 | 113.0 | 60.0 | 23.0 | 23.0 | 61.0 | 6 |
